PRESSURE REDUCER

TO REDUCE PRESSURE IN A SAFE, PRECISE, STABLE WAY

DESCRIPTION

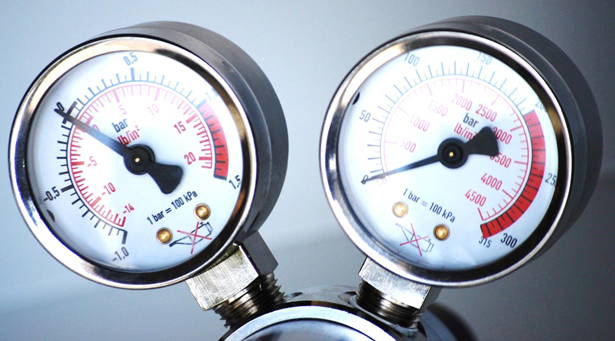

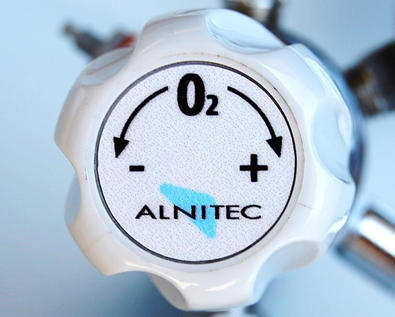

Dual stage diaphragm pressure reducer. Input high pressure manometer. Output low pressure manometer. Low pressure oxygen output with compatible fitting  with PTFE 4×2,5 mm Alnitec pipe. Compatible with all the existing connection fittings, using the threading 1/4′ NPT. Connectable with medical oxygen tank or with hospital oxygen wall outlet . Safety relief valve for overpressure. High stability outlet pressure. Accurate pressure control knob. “No oil” manometers.

TECHNICAL FEATURES

Maximum input pressure: 200 Bar
Maximum output pressure: 1 Bar
Weight: 1,45 Kg
Body material: AISI 304 steel
Dimensions: 100×117 mm (front view); 180 mm (depth).
